C13 connector /C14 appliance inlet

C13 connectors (standard IEC 60320-1/C13, DIN VDE 0625, Part 1) are designed for 220 to 250 volts (rated voltage 230 volts) and are mainly used where no significant heat is generated. Typical applications for C13 connectors are audio and video, stage technology, peripheral devices, computers, etc. It should be noted that the maximum temperature at the connecting pins must not exceed 70°C. The maximum current carrying capacity is 10 amps. Typically, the C13 connector is equipped with a Schuko plug or any other country type on the second side. The assembled power cable is referred to as an cold device cable. The matching counterpart is the appliance inlet C14 in accordance with standard IEC 60320 - C14.

Our C13 connector is labeled D1, our C14 plug is labeled S1

Angled IEC 60320 C14 plug to Angled IEC 60320 C13 connector 0,4 m, black

Power cord H05VV-F 3 G 0,75 blackwith molded Angled IEC 60320 C14 plugand Angled IEC 60320 C13 connector400 mm long,origin: Fareast

Price on request

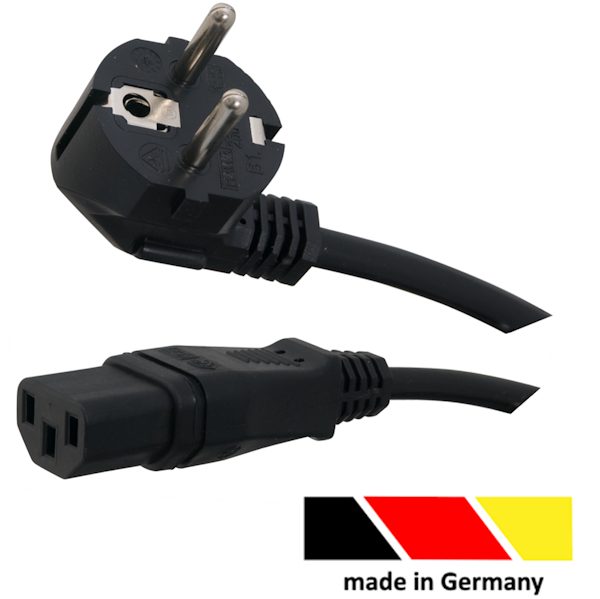

Angled Schuko plug with IEC 60320 C13 connector, 1,8 m, black

Power cord H05VV-F 3 G 1,5 black,with molded Angled Schuko plug 16A/250Vwith double earthing contact and IEC 60320 C13 connector 10A,1830 mm long, origin: Fareast

Price on request

Angled Schuko plug with IEC 60320 C13 connector, 1,8 m, black, halogen free, LSZH

Power cord H05Z1Z1-F 3 G 1,0 black,with molded Angled Schuko plug 16A/250Vwith double earthing contact and IEC 60320 C13 connector 10A,1830 mm long, origin: Fareast

Price on request

Angled Schuko plug with IEC 60320 C13 connector, 3,0 m, black

Power cord H05VV-F 3 G 1,5 black,with molded Angled Schuko plug 16A/250Vwith double earthing contact and IEC 60320 C13 connector 10A,3000 +/- 50 mm long, origin: Fareast

Price on request

Angled Schuko plug with IEC 60320 C13 connector, 3,0 m, black, halogen free, LSZH

Power cord H05Z1Z1-F 3 G 1,0 black,with molded Angled Schuko plug 16A/250Vwith double earthing contact and IEC 60320 C13 connector 10A, 3000 +/- 50 mm long, origin: Fareast

Price on request

Angled Schuko plug with IEC 60320 C13 connector, 5,0 m, black, halogen free, LSZH

Power cord H05Z1Z1-F 3 G 1,0 black,with molded Angled Schuko plug 16A/250Vwith double earthing contact and IEC 60320 C13 connector 10A, 5000 +/- 80 mm long, origin: Fareast

Price on request

Angled Schuko plug, 1,8 m, with angled IEC 60320 C13 connector

Power cord H05VV-F 3 G 0,75 black,with molded angled Schuko plug 16A/250Vwith double earthing contact and angled IEC 60320 C13 connector, 10A/250V,1830 mm long,origin: Fareast

Price on request

Angled Schuko plug, 1,8 m, with Angled IEC 60320 C13 connector

Power cord H05VV-F 3 G 0,75 black,with molded Angled Schuko plug 16A/250Vwith double earthing contact and Angled IEC 60320 C13 connector, 10A, 1830 mm long,origin: Fareast

Price on request

Angled Schuko plug, 1,8 m, with Angled IEC 60320 C13 connector

Power cord H05VV-F 3 G 0,75 black,with molded Angled Schuko plug 16A/250Vwith double earthing contact andAngled IEC 60320 C13 connector,1830 mm long,origin: Fareast

Price on request

Angled Schuko plug, 1,8 m, with Angled IEC 60320 C13 connector

Power cord H05VV-F 3 G 0,75 black,with molded Angled Schuko plug 16A/250Vwith double earthing contact andAngled IEC 60320 C13 connector,1830 mm long,origin: Fareast

Price on request

Angled Schuko plug, 2,5 m, with Angled IEC 60320 C13 connector

Power cord H05VV-F 3 G 1,0 black,with molded Angled Schuko plug 16A/250Vwith double earthing contact and Angled IEC 60320 C13 connector, 10 A,2500 mm long,origin: Fareast

Price on request

Angled Schuko plug, 3,0 m, with Angled IEC 60320 C13 connector

Power cord H05VV-F 3 G 1,0 black,with molded Angled Schuko plug 16A/250Vwith double earthing contact andAngled IEC 60320 C13 connector,3000 mm long,origin: Fareast

Price on request

Angled Schuko plug, 3,0 m, with Angled IEC 60320 C13 connector

Power cord H05VV-F 3 G 1,0 black,with molded Angled Schuko plug 16A/250Vwith double earthing contact andAngled IEC 60320 C13 connector,3000 mm long,origin: Fareast

Price on request

Angled Schuko plug, 3,0 m, with WinkelIEC 60320 C13 connector

Power cord H05VV-F 3 G 1,0 black,with molded Angled Schuko plug 16A/250Vwith double earthing contact and Angled IEC 60320 C13 connector, 10 A,3000 mm long,origin: Fareast

Price on request

Angled Schuko plug, 3,0 m, with WinkelIEC 60320 C13 connector

Power cord H05VV-F 3 G 1,0 black,with molded Angled Schuko plug 16A/250Vwith double earthing contact and Angled IEC 60320 C13 connector, 10 A,3000 mm long,origin: Fareast

Price on request

Angled Schuko plug, 5,0 m, with Angled IEC 60320 C13 connector

Power cord H05VV-F 3 G 1,0 black,with molded Angled Schuko plug 16A/250Vwith double earthing contact andAngled IEC 60320 C13 connector,5000 mm long,origin: Fareast

Price on request

Angled Schuko plug, 5,0 m, with Angled IEC 60320 C13 connector

Power cord H05VV-F 3 G 1,0 black,with molded Angled Schuko plug 16A/250Vwith double earthing contact andAngled IEC 60320 C13 connector,5000 mm long,origin: Fareast

Price on request

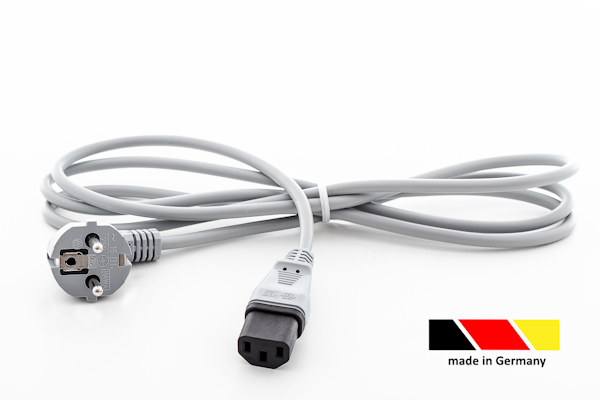

Angled Schuko plug, grey, 5 m, with Angled IEC 60320 C13 connector

Power cord H05VV-F 3 G 1,0 with molded Angled Schuko plug 16A/250Vwith double earthing contact and Angled IEC 60320 C13 connector 10A, 5000 mmorigin: Fareast

Price on request

Angled Schuko plug, with IEC 60320 C13 connector with Locking (IEC Lock), 2,0 m

Power cord H05VV-F 3 G 1,0 black,with molded Angled Schuko plug 16 A / 250 Vwith double earthing contact and IEC 60320 C13 connector with IEC Lock, 2000 mm long, origin: Fareast

Price on request

New

Angled Schuko plug, with IEC 60320 C13 connector with Locking (IEC Lock), 2,0 m

Power cord H05VV-F 3 G 1,0 black,with molded Angled Schuko plug 16 A / 250 Vwith double earthing contact and IEC 60320 C13 connector with IEC Lock, 2000 mm long, origin: Fareast

Price on request

Angled Schuko plug, with IEC 60320 C13 connector, 0,5 m

Power cord H05VV-F 3 G 0,75 black,with molded Angled Schuko plug 16 A / 250 Vwith double earthing contact and IEC 60320 C13 connector 10 A,500 mm long

Price on request

Angled Schuko plug, with IEC 60320 C13 connector, 0,9 m

Power cord H05VV-F 3 G 0,75 black,with molded Angled Schuko plug 16 A / 250 Vwith double earthing contact and IEC 60320 C13 connector 10 A 915 mm long, origin: Fareast

Price on request

Angled Schuko plug, with IEC 60320 C13 connector, 10,0 m

Power cord H05VV-F 3 G 1,5 black,with molded Angled Schuko plug 16 A / 250 Vwith double earthing contact and IEC 60320 C13 connector 10 A10000 mm long, origin: Fareast

Price on request

Argentina plug, 3 pole, 1,8 m, with IEC 60320 C13 connector, black

Power cord H05VV-F 3 G 0,75, black,with molded Argentina plugand IEC 60320 C13 connector 10A, 1830 mm long,origin: Fareast

Price on request
