CEE 7/7 Schuko plugs

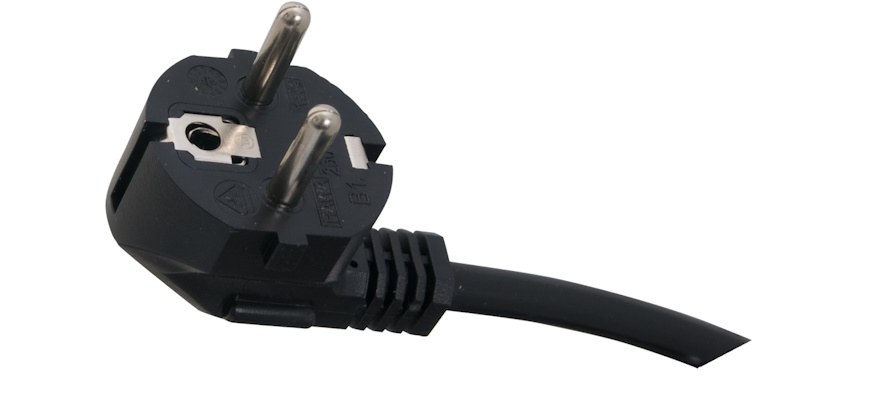

CEE 7/7 Schuko plug

Our protective contact plugs are manufactured in accordance with the applicable standards CEE 7/7, DIN 49441 R2, DIN VDE 0620-1, and IEC 60884-1. They are designed for voltages ranging from 220 to 250 volts (rated voltage: 230 volts) and are suitable for use in most parts of Europe.

The CEE 7/7 plug combines the Type E (French-Belgian standard) and Type F (protective contact/"Schuko") systems in a single design, allowing compatibility with both socket types. The integrated protective earth contact ensures the safe dissipation of fault currents and is connected to electrically conductive parts of the housing.

Our Class I protective contact plug versions feature:

a PVC jacket,
dual protective earth contacts (side and center),
an integrated strain relief,
and are rated for currents up to 16 A at 250 V.

Technical specifications of the contact pins:

Diameter: 4.8 mm
Length: 19 mm
Center distance: 19 mm

Product variants:

B1: Angled Schuko plug
E1: Straight Schuko plug

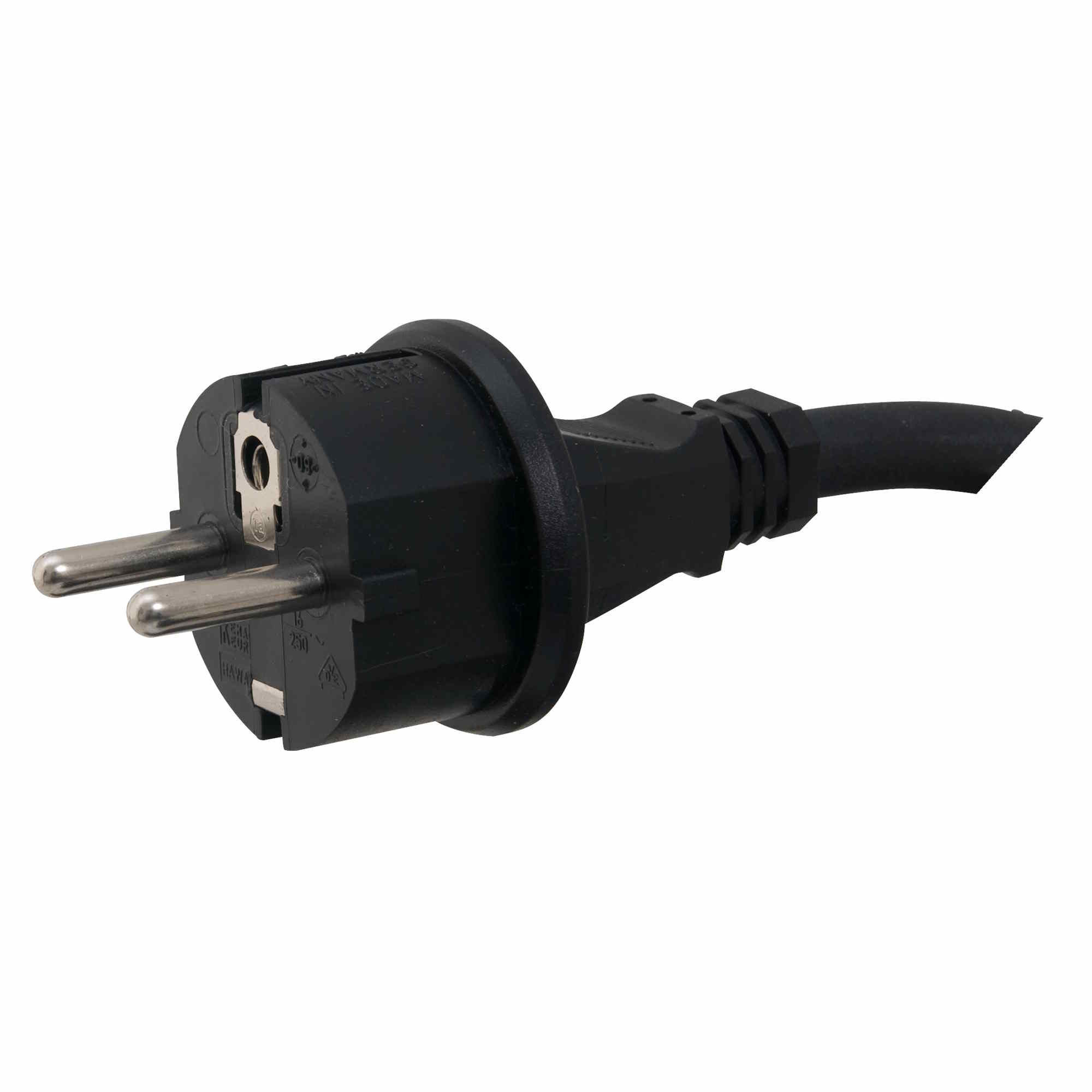

F1: Straight Schuko plug with IP44 rating (splash-proof).

Angled Schuko plug and Angled IEC 60320 C5 connector, 1,8 m, black

Power cord H05VV-F 3 G 0,75 black,with molded Angled Schuko plug 16A/250Vwith double earthing contact and Angled IEC 60320 C5 connector, 2,5A,1830 mm long, origin: Fareast

Price on request

Angled Schuko plug and Angled IEC 60320 C5 connector, 3,0 m, black

Power cord H05VV-F 3 G 0,75 black,with molded Angled Schuko plug 16A/250Vwith double earthing contact and Angled IEC 60320 C5 connector, 2,5A,3000 mm long, origin: Fareast

Price on request

Angled Schuko plug and Angled IEC 60320 C5 connector, 5,0 m, black

Power cord H05VV-F 3 G 0,75 black,with molded Angled Schuko plug 16A/250Vwith double earthing contact and Angled IEC 60320 C5 connector, 2,5A,5000 mm long, origin: Fareast

Price on request

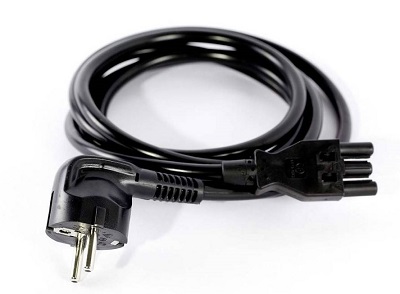

Angled schuko plug to GST18i3 socket, black, 5 m

Power cord H05VV-F 3 G 1,5 black Part 1: moulded angled schuko plugPart 2: moulded socket equivalent to Wieland GST-18i3,5000 +/- 75 mm long,Origin: Made in Germany

Price on request

Angled Schuko plug to IEC 60320 C15 connector 0,7 m, black

Power cord H05V2V2-F 3 G 1,0 blackwith molded Angled Schuko plug 16A/250Vwith double earthing contactand IEC 60320 C15 connector700 mm long,origin: Fareast

Price on request

Angled Schuko plug to IEC 60320 C15 connector 1,8 m, black

Power cord H05V2V2-F 3 G 1,0 blackwith molded Angled Schuko plug 16A/250Vwith double earthing contactand IEC 60320 C15 connector1830 mm long,origin: Fareast

Price on request

Angled Schuko plug to IEC 60320 C15 connector 3,0 m, black

Power cord H05V2V2-F 3 G 1,0 blackwith molded Angled Schuko plug 16A/250Vwith double earthing contactand IEC 60320 C15 connector3000 mm long,origin: Fareast

Price on request

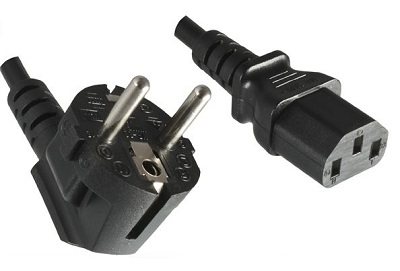

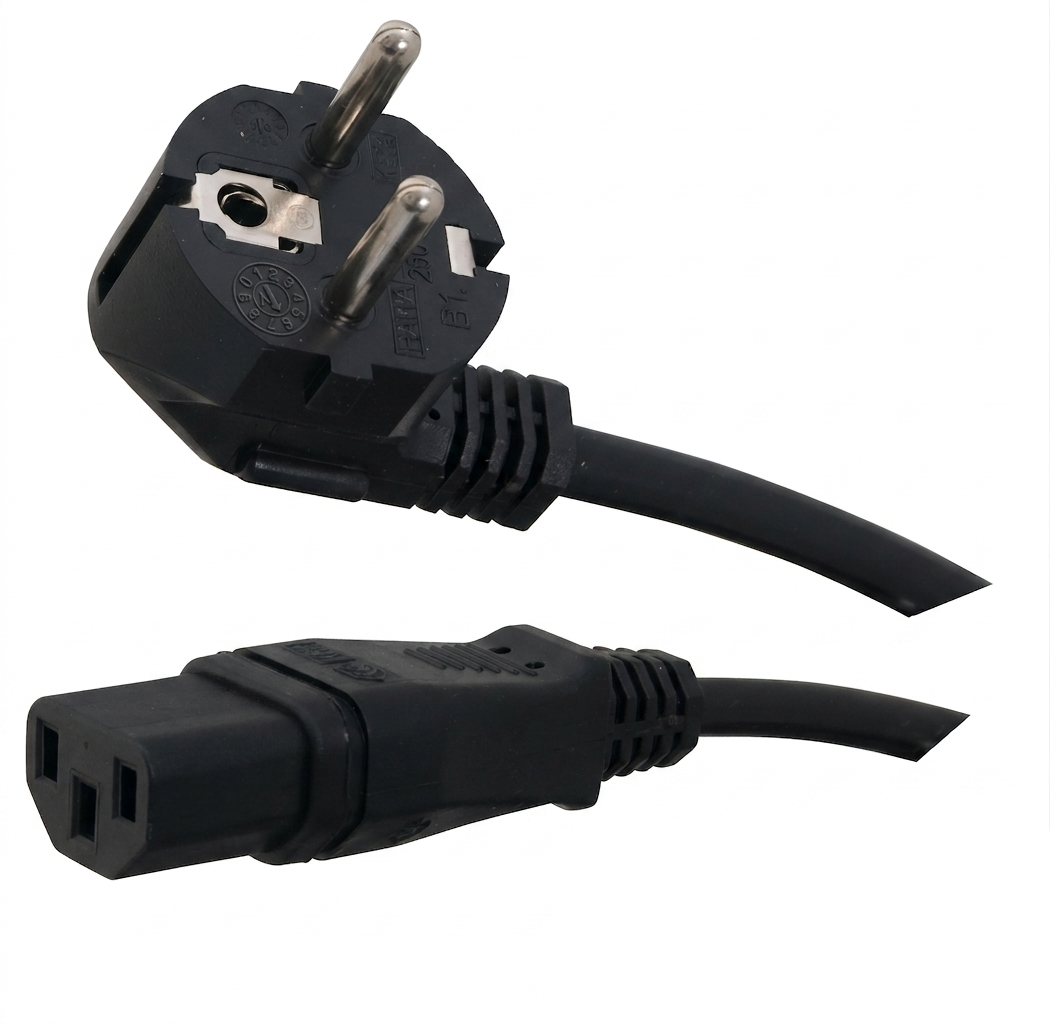

Angled Schuko plug with IEC 60320 C13 connector, 1,8 m, black

Power cord H05VV-F 3 G 1,5 black,with molded Angled Schuko plug 16A/250Vwith double earthing contact and IEC 60320 C13 connector 10A,1830 mm long, origin: Fareast

Price on request

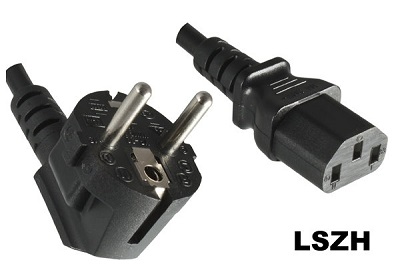

Angled Schuko plug with IEC 60320 C13 connector, 1,8 m, black, halogen free, LSZH

Power cord H05Z1Z1-F 3 G 1,0 black,with molded Angled Schuko plug 16A/250Vwith double earthing contact and IEC 60320 C13 connector 10A,1830 mm long, origin: Fareast

Price on request

Angled Schuko plug with IEC 60320 C13 connector, 3,0 m, black

Power cord H05VV-F 3 G 1,5 black,with molded Angled Schuko plug 16A/250Vwith double earthing contact and IEC 60320 C13 connector 10A,3000 +/- 50 mm long, origin: Fareast

Price on request

Angled Schuko plug with IEC 60320 C13 connector, 3,0 m, black, halogen free, LSZH

Power cord H05Z1Z1-F 3 G 1,0 black,with molded Angled Schuko plug 16A/250Vwith double earthing contact and IEC 60320 C13 connector 10A, 3000 +/- 50 mm long, origin: Fareast

Price on request

Angled Schuko plug with IEC 60320 C13 connector, 5,0 m, black, halogen free, LSZH

Power cord H05Z1Z1-F 3 G 1,0 black,with molded Angled Schuko plug 16A/250Vwith double earthing contact and IEC 60320 C13 connector 10A, 5000 +/- 80 mm long, origin: Fareast

Price on request

Angled Schuko plug, 1,8 m, with angled IEC 60320 C13 connector

Power cord H05VV-F 3 G 0,75 black,with molded angled Schuko plug 16A/250Vwith double earthing contact and angled IEC 60320 C13 connector, 10A/250V,1830 mm long,origin: Fareast

Price on request

Angled Schuko plug, 1,8 m, with Angled IEC 60320 C13 connector

Power cord H05VV-F 3 G 0,75 black,with molded Angled Schuko plug 16A/250Vwith double earthing contact and Angled IEC 60320 C13 connector, 10A, 1830 mm long,origin: Fareast

Price on request

Angled Schuko plug, 1,8 m, with Angled IEC 60320 C13 connector

Power cord H05VV-F 3 G 0,75 black,with molded Angled Schuko plug 16A/250Vwith double earthing contact andAngled IEC 60320 C13 connector,1830 mm long,origin: Fareast

Price on request

Angled Schuko plug, 3,0 m, with Angled IEC 60320 C13 connector

Power cord H05VV-F 3 G 1,0 black,with molded Angled Schuko plug 16A/250Vwith double earthing contact andAngled IEC 60320 C13 connector,3000 mm long,origin: Fareast

Price on request

Angled Schuko plug, 3,0 m, with WinkelIEC 60320 C13 connector

Power cord H05VV-F 3 G 1,0 black,with molded Angled Schuko plug 16A/250Vwith double earthing contact and Angled IEC 60320 C13 connector, 10 A,3000 mm long,origin: Fareast

Price on request

Angled Schuko plug, 3,0 m, with WinkelIEC 60320 C13 connector

Power cord H05VV-F 3 G 1,0 black,with molded Angled Schuko plug 16A/250Vwith double earthing contact and Angled IEC 60320 C13 connector, 10 A,3000 mm long,origin: Fareast

Price on request

Angled Schuko plug, 5,0 m, with Angled IEC 60320 C13 connector

Power cord H05VV-F 3 G 1,0 black,with molded Angled Schuko plug 16A/250Vwith double earthing contact andAngled IEC 60320 C13 connector,5000 mm long,origin: Fareast

Price on request

Angled Schuko plug, 5,0 m, with Angled IEC 60320 C13 connector

Power cord H05VV-F 3 G 1,0 black,with molded Angled Schuko plug 16A/250Vwith double earthing contact andAngled IEC 60320 C13 connector,5000 mm long,origin: Fareast

Price on request

Angled Schuko plug, grey, 5 m, with Angled IEC 60320 C13 connector

Power cord H05VV-F 3 G 1,0 with molded Angled Schuko plug 16A/250Vwith double earthing contact and Angled IEC 60320 C13 connector 10A, 5000 mmorigin: Fareast

Price on request

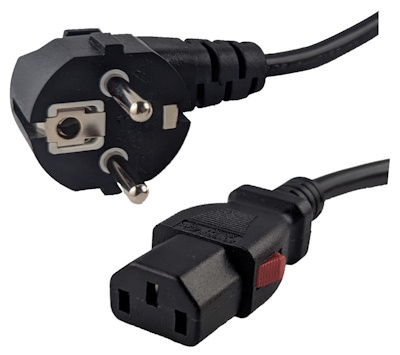

Angled Schuko plug, with IEC 60320 C13 connector with Locking (IEC Lock), 2,0 m

Power cord H05VV-F 3 G 1,0 black,with molded Angled Schuko plug 16 A / 250 Vwith double earthing contact and IEC 60320 C13 connector with IEC Lock, 2000 mm long, origin: Fareast

Price on request

New

Angled Schuko plug, with IEC 60320 C13 connector with Locking (IEC Lock), 2,0 m

Power cord H05VV-F 3 G 1,0 black,with molded Angled Schuko plug 16 A / 250 Vwith double earthing contact and IEC 60320 C13 connector with IEC Lock, 2000 mm long, origin: Fareast

Price on request

Angled Schuko plug, with IEC 60320 C13 connector, 0,9 m

Power cord H05VV-F 3 G 0,75 black,with molded Angled Schuko plug 16 A / 250 Vwith double earthing contact and IEC 60320 C13 connector 10 A 915 mm long, origin: Fareast

Price on request
