Schweizer-Stecker (Typ J)

Swiss plug

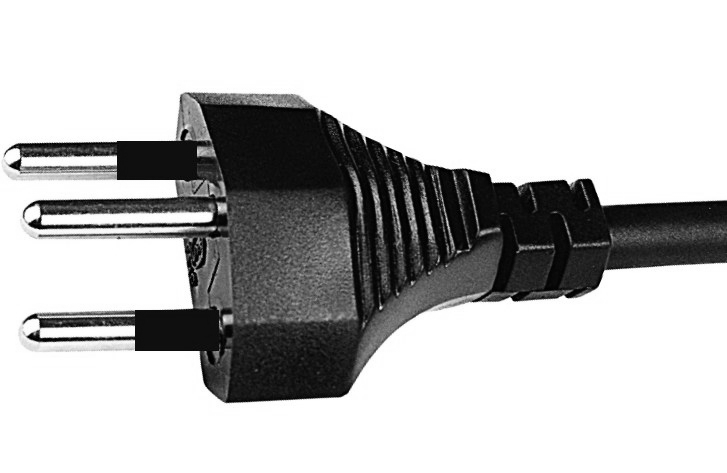

Swiss plugs of type 12, according to the standard SN 441011 (until 2019 SEV 1011), have three round contact pins in which the middle (earth contact) is slightly offset. This ensures reverse polarity protection. The Swiss type 12 plugs are designed for a voltage of 220-250 volts and a load of up to 10 amps. Internationally, the Swiss plug is referred to as type J. A 2-pole variant is also possible. This type of plug is then referred to as type 11. If higher protection than IP20 is required, Swiss IP55 plugs are used (according to the new series of standards SN 441011). Protection is guaranteed when the IP55 plug is plugged into a corresponding IP55 socket. Areas of application include agricultural operations, horticulture, construction, power distribution and outdoor devices.
Tip
Power cord individually configurable
Power cord individually configurable

You haven't found the right power cord? Just get in touch with us! We will try to make an offer for the variant you require.

Price on request

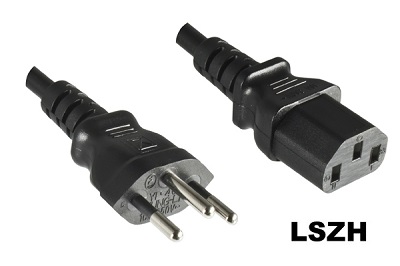

Swiss plug with IEC 60320 C13 connector, 2,0 m, black, halogen free, LSZH
Swiss plug with IEC 60320 C13 connector, 2,0 m, black, halogen free, LSZH

Power cord H05Z1Z1-F 3 G 1,0 black,with molded Swiss plug t12 10A/250Vand  IEC 60320 C13 connector 10A,2000 mm long,individually packed in polybag,origin: Fareast

Price on request
Swiss plug, ,0 m, with IEC 60320 C13 connector, black
Swiss plug, ,0 m, with IEC 60320 C13 connector, black

Power cord H05VV-F 3 G 1,0, black,with molded Swiss plug t12 10A/250Vand IEC 60320 C13 connector 10A/250V5000 +/- 80 mm longorigin: Fareast

Price on request

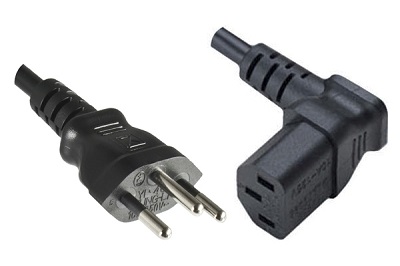

Swiss plug, 1,8 m, with Angled IEC 60320 C13 connector, black
Swiss plug, 1,8 m, with Angled IEC 60320 C13 connector, black

Power cord H05VV-F 3 G 0,75, black,with molded Swiss plug t12 10A/250Vand Angled IEC 60320 C13 connector, 10 A1830 mm longorigin: Fareast

Price on request
Swiss plug, 1,8 m, with Angled IEC 60320 C13 connector, black
Swiss plug, 1,8 m, with Angled IEC 60320 C13 connector, black

Power cord H05VV-F 3 G 0,75, black,with molded Swiss plug t12 10A/250Vand Angled IEC 60320 C13 connector, 10A1830 mm longorigin: Fareast

Price on request
Swiss plug, 1,8 m, with angled IEC 60320 C5 connector, black
Swiss plug, 1,8 m, with angled IEC 60320 C5 connector, black

Power cord H05VV-F 3 G 0,75, black,with molded Swiss plug t12 10A/250Vand angled IEC 60320 C5 connector1830 mm longorigin: Fareast

Price on request

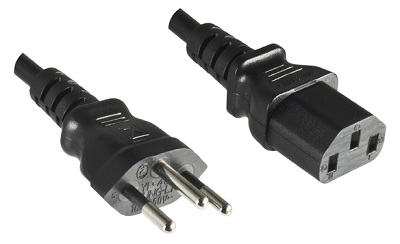

Swiss plug, 1,8 m, with IEC 60320 C13 connector, black
Swiss plug, 1,8 m, with IEC 60320 C13 connector, black

Power cord H05VV-F 3 G 0,75, black,with molded Swiss plug t12 10A/250Vand IEC 60320 C13 connector 10A1830 mm longorigin: Fareast

Price on request
Swiss plug, 1,8 m, with IEC 60320 C15 connector, black
Swiss plug, 1,8 m, with IEC 60320 C15 connector, black

Power cord H05V2V2-F 3 G 1,0, black,with molded Swiss plug t12 10A/250Vand  IEC 60320 C15 connector 10A 1830 mm longorigin: Fareast

Price on request
Swiss plug, 1,8 m, with IEC 60320 C5 connector, black
Swiss plug, 1,8 m, with IEC 60320 C5 connector, black

Power cord H05VV-F 3 G 0,75, black,with molded Swiss plug t12 10A/250Vand IEC 60320 C5 connector 1830 mm longorigin: Fareast

Price on request
Swiss plug, 3,0 m, with Angled IEC 60320 C13 connector, black
Swiss plug, 3,0 m, with Angled IEC 60320 C13 connector, black

Power cord H05VV-F 3 G 1,0 black,with molded Swiss plug t12 10A/250Vand Angled IEC 60320 C13 connector 10A/250V,3000 +/- 50 mm longorigin: Fareast

Price on request
Swiss plug, 3,0 m, with IEC 60320 C13 connector, black
Swiss plug, 3,0 m, with IEC 60320 C13 connector, black

Power cord H05VV-F 3 G 1,0, black,with molded Swiss plug t12 10A/250Vand IEC 60320 C13 connector 10A, 3000 mm longorigin: Fareast

Price on request

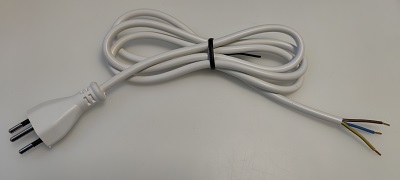

Swiss plug, 1,5 m, 40 mm stripped with splices
Swiss plug, 1,5 m, 40 mm stripped with splices

Power cord H05VV-F 3 G 1,0 white,with molded Swiss plug t12 10A/250V1500 mm long Side B: 40 mm stripped7 mm stripped with splices,Origin: Made in Germany

From €2.88
24 items in stock.
Details
Tip

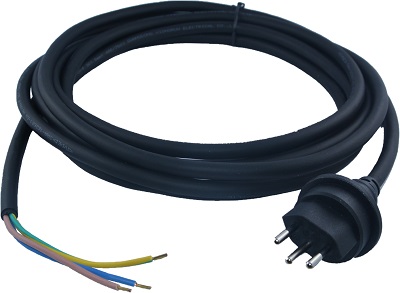

Schweizer-Stecker IP 55, 5.0 m, 100 mm abgemantelt mit Aderendhülsen
Schweizer-Stecker IP 55, 5.0 m, 100 mm abgemantelt mit Aderendhülsen

Zuleitung H07RN-F 3 G 1,5 schwarz,mit angespritztem Schweizer-Stecker IP55, 10A/250V 5000 mm lang 2. Seite: 100 mm abgemantelt7 mm abisoliert mit Aderendhülsen,keine Ursprungsware

From €12.10
37 items in stock.
Details
Swiss plug, 2,0 m, 35 mm stripped with splices
Swiss plug, 2,0 m, 35 mm stripped with splices

Power cord H05VV-F 3 G 0,75 black,with molded Swiss plug 10A/250V2000 mm long Side B: 35 mm stripped7 mm stripped with splices,origin: Fareast

From €2.72
842 items in stock.
Details
Swiss plug, 2,0 m, with IEC 60320 C13 connector, black
Swiss plug, 2,0 m, with IEC 60320 C13 connector, black

Power cord H05VV-F 3 G 0,75, black,with molded Swiss plug t12 10A/250Vand IEC 60320 C13 connector 10A 2000 mm longorigin: Fareast

From €3.60
26 items in stock.
Details
Tip
Swiss plug, IP 55, 2.0 m, 100 mm stripped with splices
Swiss plug, IP 55, 2.0 m, 100 mm stripped with splices

Power cord H05RN-F 3 G 1,0 black,with molded Swiss plug IP55, 10A/250V 2000 mm long Side B: 100 mm stripped7 mm stripped with splices,origin: Fareast

From €4.13
Currently not in stock
Details
